CDI

CDI Metal Handle Click Type Torque Wrenches - Dual Scale

SKU: CDI1002MFRMH:EA Available on Backorder
Regular price $232.61
Drive

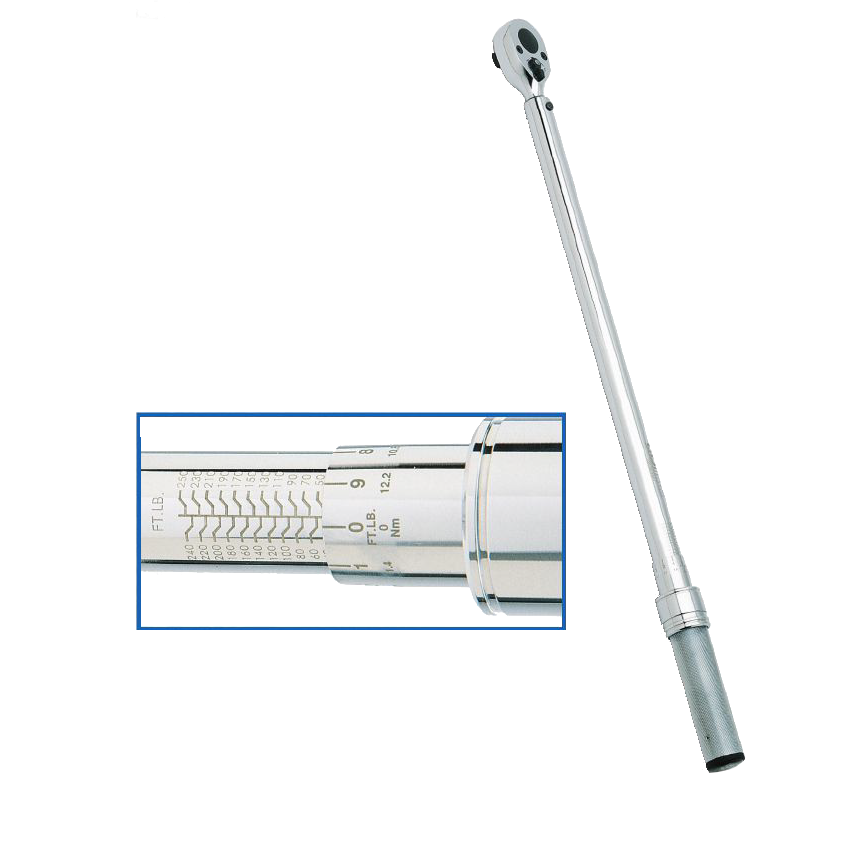

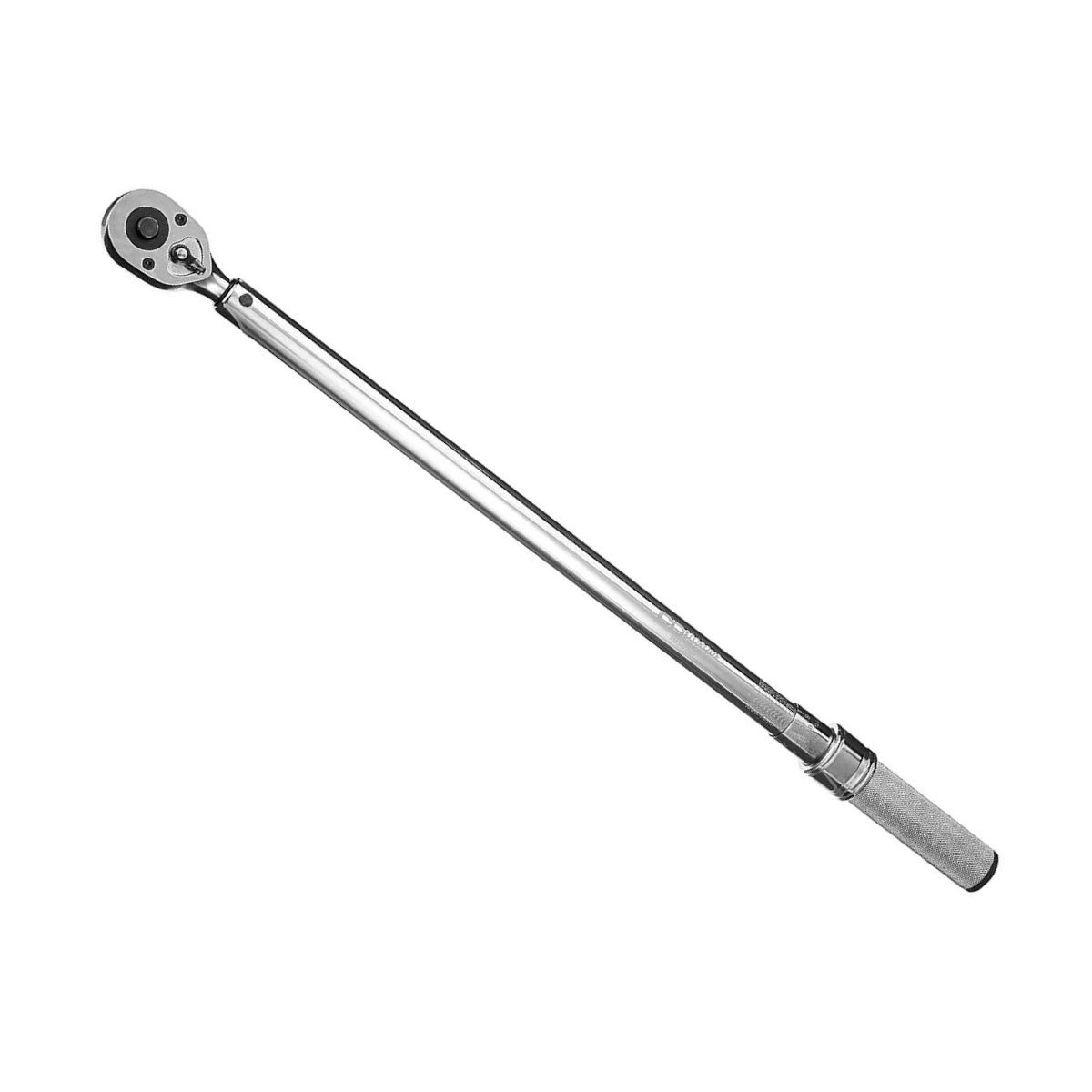

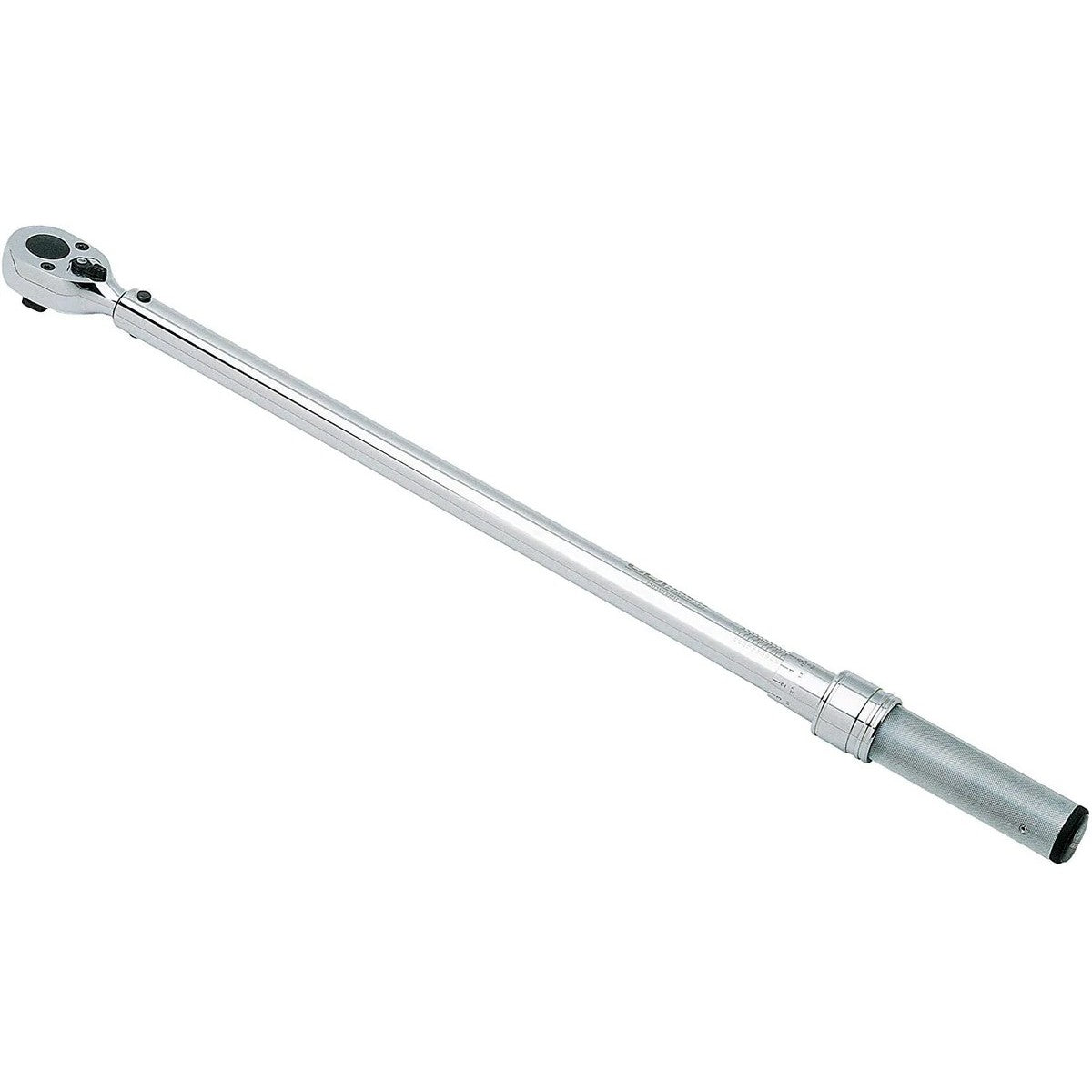

Metal Handle Dual Scale. The metal handle series offers the user a rugged, industrial strength torque wrench able to withstand the rigors of professional use. Handles are lightly knurled for a tough, non-slip grip. There are 21 models of metal handle micrometer adjustable torque wrenches available.

Features:

  • Dual scale, calibrated dual direction
  • Positive lock with spring loaded pull down lock ring
  • Fast, accurate and easy to set
  • Easy-to-read laser marked scales
  • Most feature quick release buttons which provide good socket retention as well as easy socket removal
  • Accuracy: ±3% CW ±4% CCW of indicated value, CW, from 20% to 100% of full scale
  • Individually serialized with matching certificate of calibration traceable to N.I.S.T.

Specifications:

Product Code Drive Size English Range Incr. Nm Range Incr. A in. B in. C in. D in. Wt lbs
1002MFRMH 3/8" 10-100 ft. lb. 0.5 16.9 - 132.2 Nm .7 16" 1.43" 1.2" 1.4" 2.55 lbs
1503MFRMH 1/2" 20-150 ft. lb. 1 34 - 197 Nm 1.4 19" 1.7" 1.4" 1.4" 3.15 lbs
2503MFRMH 1/2" 30-250 ft. lb. 1 47 - 332 Nm 1.4 24.4" 1.7" 1.4" 1.4" 3.15 lbs

    * All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
