Fein Mag Drill unit up to 2-1/2" (65mm) Model JCM 256 U
Fein Mag Drill unit up to 2-1/2" (65mm) Model JCM 256 U
Fein

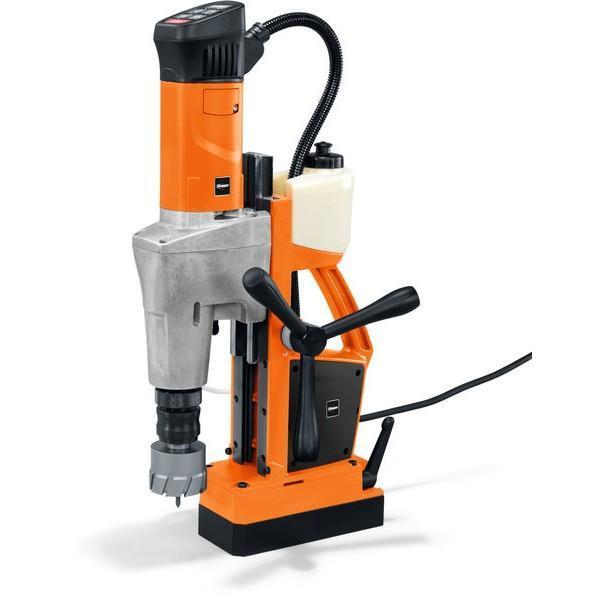

Fein JCM 256 U Mag Drill unit up to 2-1/2" (65mm)

SKU: FEITJCM256U:EA Available on Backorder
$3,989.05
Description

High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.

Details:

  • Stable speed, even in the toughest applications.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Double drill motor guides enable use of the largest annular cutters.
  • Optional Weldon QuickIN arbor is available. (uses standard 3/4 in Weldon shank cutters).
  • Reversible
  • Electronic speed control.
  • MK3 interface.
  • High magnetic holding force.
  • Convenient magnetic holding force gauge.
  • Integrated cooling tank.

Features:

  • Magnet monitor system
  • Magnet holding force gauge
  • Reversible
  • Electronic speed reduction
  • Memory function
  • Speed-controlled tacho electronics

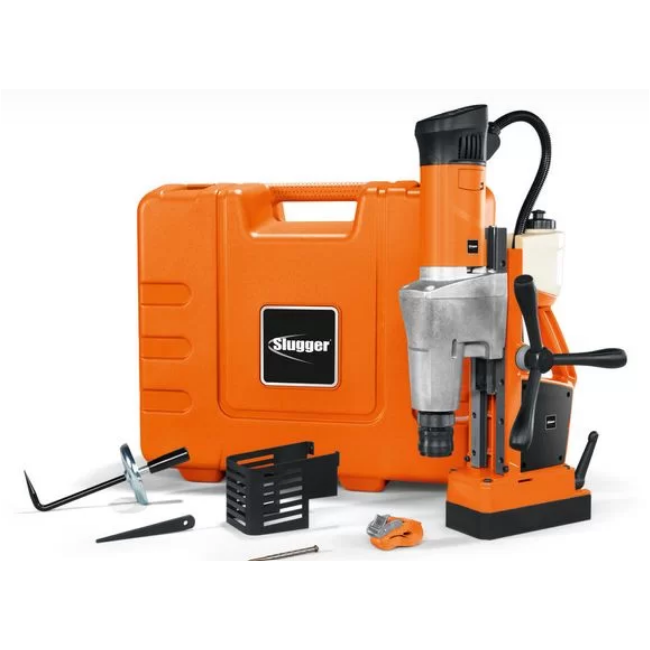

Includes:

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin 4 1/8 in (105 mm)
  • 1 chip guard
  • 1 drift
  • 1 case
    Specifications:
    • Power consumption: 1,300 W
    • Power output: 730 W
    • Load speed:
      • 1st gear: 120 - 240 rpm
      • 2nd gear: 260 - 520 rpm
    • Tool mount: MT 3
    • Carbide cutter max. dia.: 2-1/2" (65 mm)
    • HSS cutter max. dia.: 1-3/4" (45 mm)
    • Cutter max. drilling depth: 2" (50 mm)
    • Twist drill max. dia.: 1" (25 mm)
    • Tapping: 3/4" (M 20)
    • Max. countersinking dia.: 2" (50 mm)
    • Reaming max. dia.: 1" (25 mm)
    • Cutter holder: 3/4" straight shank
    • Cutter change: tool-free
    • Stroke: 5-11/16" (145 mm)
    • Total stroke range: 12-3/8" (315 mm)
    • Drill stand adjustment range: 1/4" (6 mm)
    • Drill stand angular adjustment: 7°
    • Magnetic holding force: 3,147 lbs (14,000 N)
    • Magnetic base dimensions: 8-1/16" x 3-3/4" (205 mm x 95 mm)
    • Cable with plug: 13.1' (4 m)
    • Weight: 35.05 lbs (15.90 kg)

    Vibrations and Sound Emission Values:

    • Sound pressure level LpA: 81,6 dB
      • Measurement uncertainty of the measured value KpA: 5 dB
    • Sound power level LWA: 92,6 dB
      • Measurement uncertainty of the measured value KWA: 5 dB
    • Peak sound value LpCpeak: 95,2 dB
      • Measurement uncertainty of the measured value KpCpeak: 5 dB
