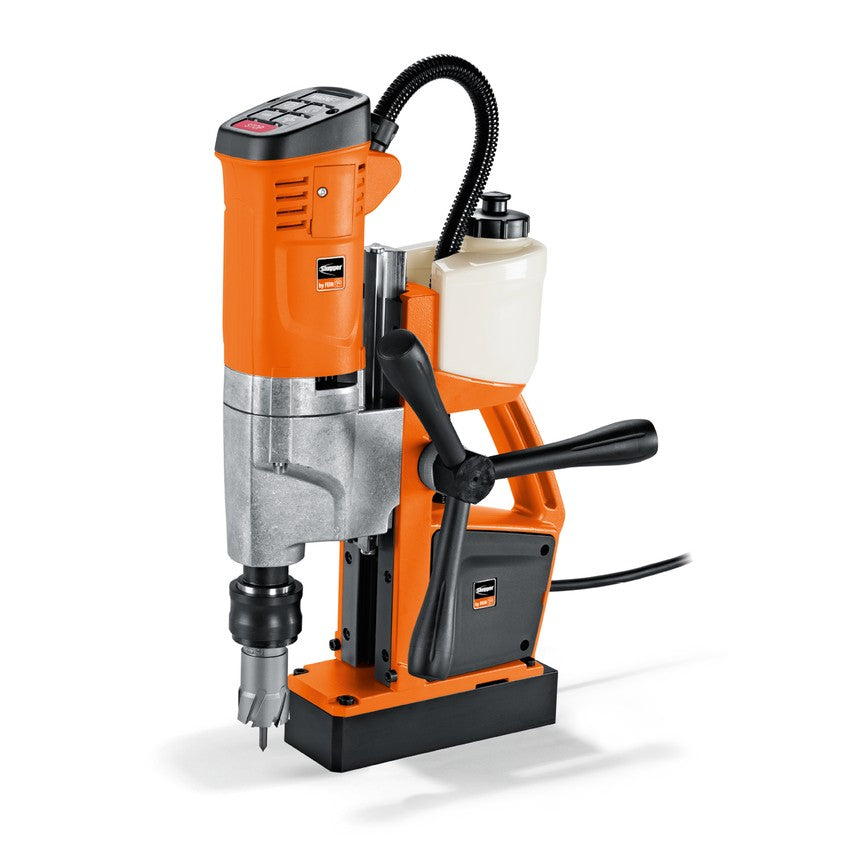

Small, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation and high-speed for efficient twist drilling on the construction site.
Features:- Magnet holding force gauge
- Reversible
- Electronic speed reduction
- Memory function
- Speed-controlled tacho electronics
- Tip sensor
- Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve.
- Designed for heavy use in trade and industry.
- Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
- Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
- Small, with mechanic 2-gearbox for twist drilling.
- Simple and error-proof control concept in the operator's field of view.
- Convenient magnetic holding force display.
- High magnetic holding force.
- Motion sensor.
- Additional magnet switch in the drill stand.
- Integrated coolant tank.
- Hand feed wheel can be mounted on either side.
- "Memory function" speed storage.
- Power consumption: 1,100 W
- Power output: 550 W
- Load speed 1st gear: 130 - 520 rpm
- Load speed 2nd gear: 400 - 1,600 rpm
- Carbide cutter max. dia.: 1-3/8" (35mm)
- HSS cutter max. dia.: 1-3/8" (35mm)
- Cutter max. drilling depth: 2" (50mm)
- Twist drill max. dia.: 5/8" (16mm)
- Tapping: 9/16" (M 14)
- Max. countersinking dia.: 1-1/4" (31mm)
- Reaming max. dia.: 5/8" (16mm)
- Cutter holder: 3/4" straight shank
- Cutter change: tool-free
- Stroke: 5-5/16" (135mm)
- Total stroke range: 10-1/4" (260mm)
- Magnetic holding force: 2136 lbs (9,500 N)
- Magnetic base dimensions: 7-5/16" x 2-3/4" (186mm x 70mm)
- Cable with plug: 13.1' (4m)
- Weight according to EPTA: 24.25 lbs (11.00kg)
