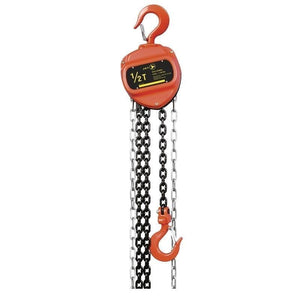

1/2 Ton 10' Lift VCH Series Chain Hoist (101002)
- Triple spur geared for efficient operation
- Hardened steel roller bearings support load sheave for easy operation
- Dual pawl Weston style brake for safe reliable operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Grade 80 load chain
- Top and bottom safety hooks bend slowly to warn of overloads
- Load tested to 150% of rated capacity with certificate
- Meets ASME B30.16 standards
- ISO 9001-2000 certified factory
- NOTE: Custom Lifts are available in any length desired.
- Product Weight (lb/kg) 19.756 lb (8.98 kg)
- Rated Lifting Capacity (Tons) 1/2
- Rated Lifting Capacity (lbs) 1,100
- Standard Lift 10'
- Head Room 11-1/32"
- Number of Falls 1
- Load Chain Diameter 6.0mm
- Force Req. to Lift Capacity (lbs) 49
- Length of Hand Chain Pulled to Lift Load 1 ft 27'
- A 4-15/16"
- B 4-13/16"
- C 35mm
- G 27mm
- H 11-1/32"
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
