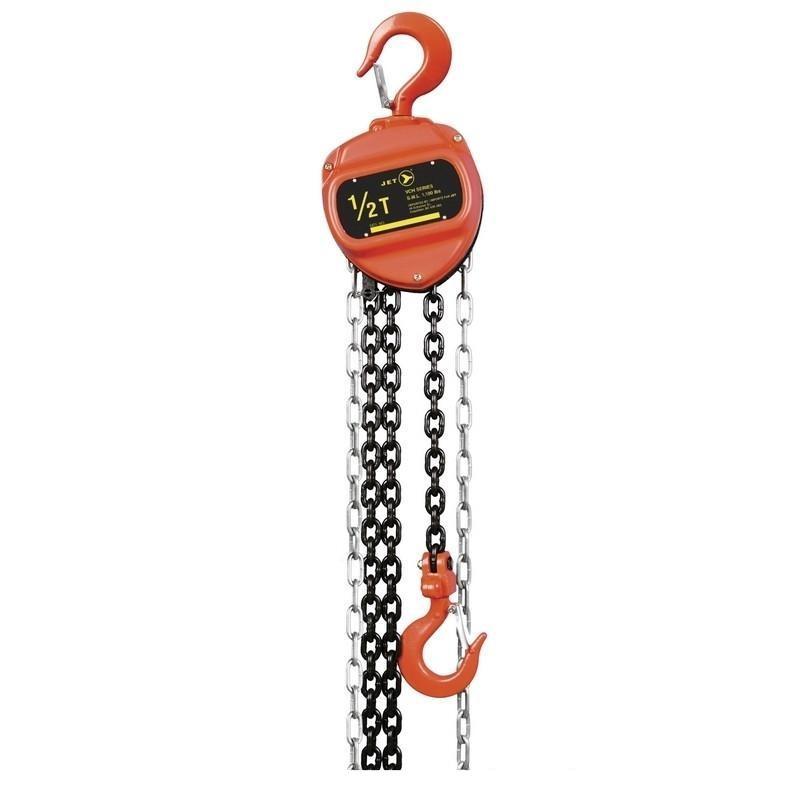

1/2 Ton 20' Lift VCH Series Chain Hoist (101006)

1/2 Ton 20' Lift VCH Series Chain Hoist (101006)

Jet

Shipping 37.33 lb

  • $202.26


1/2 Ton 20' Lift VCH Series Chain Hoist (101006)
  • Triple spur geared for efficient operation
  • Hardened steel roller bearings support load sheave for easy operation
  • Dual pawl Weston style brake for safe reliable operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Grade 80 load chain
  • Top and bottom safety hooks bend slowly to warn of overloads
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired.
Specifications:
  • Shipping Weight 31.5 lb (14.3 kg)
  • Product Weight (lb/kg) 30.8 lb (14 kg)
  • Rated Lifting Capacity (Tons) 1/2
  • Rated Lifting Capacity (lbs) 1,100
  • Standard Lift 20'
  • Head Room 11-1/32"
  • Number of Falls 1
  • Load Chain Diameter 6.0mm
  • Force Req. to Lift Capacity (lbs) 49
  • Length of Hand Chain Pulled to Lift Load 1 ft 27'
  • A 4-15/16"
  • B 4-13/16"
  • C 35mm
  • G 27mm
  • H 11-1/32"

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
