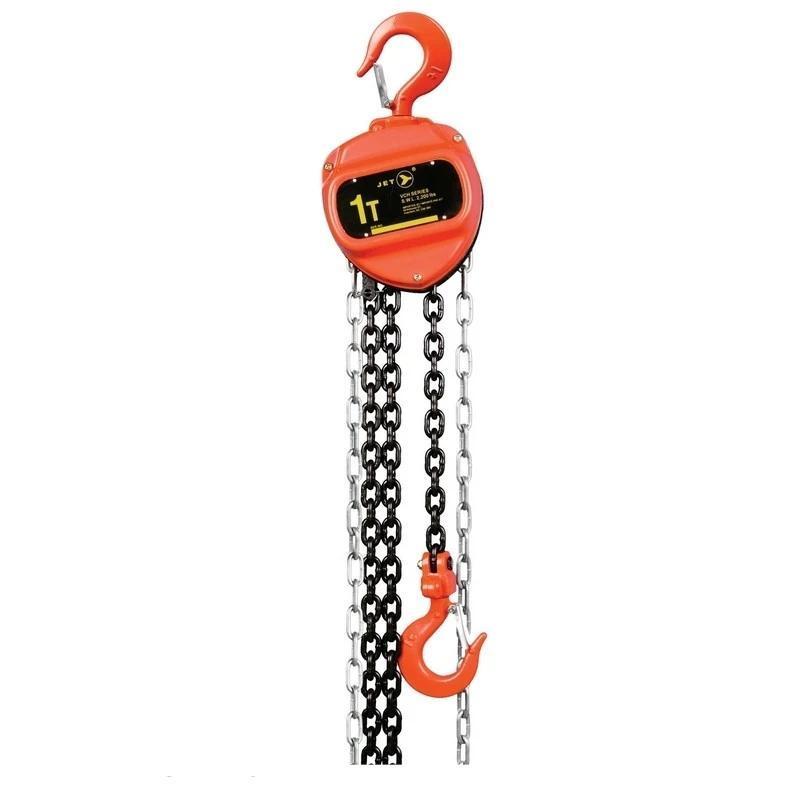

Jet 101012 1 Ton 10' Lift VCH Series Chain Hoist

• Triple spur geared for efficient operation
• Hardened steel roller bearings support load sheave for easy operation
• Dual pawl Weston style brake for safe reliable operation
• Exclusive premium grade, non-asbestos brake discs for longest life
• Grade 80 load chain
• Top and bottom safety hooks bend slowly to warn of overloads
• Load tested to 150% of rated capacity with certificate
• Meets ASME B30.16 standards
• ISO 9001-2000 certified factory
• NOTE: Custom Lifts are available in any length desired.

• Product Weight (lb/kg) 24.2 lb (11 kg)
• Rated Lifting Capacity (Tons) 1
• Rated Lifting Capacity (lbs) 2,200
• Standard Lift 10'
• Head Room 12-1/16"
• Number of Falls 1
• Load Chain Diameter 6.0mm
• Force Req. to Lift Capacity (lbs) 68
• Length of Hand Chain Pulled to Lift Load 1 ft 40'
• A 5-3/4"
• B 5-1/2"
• C 45mm
• G 33mm
• H 12-1/16"

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
