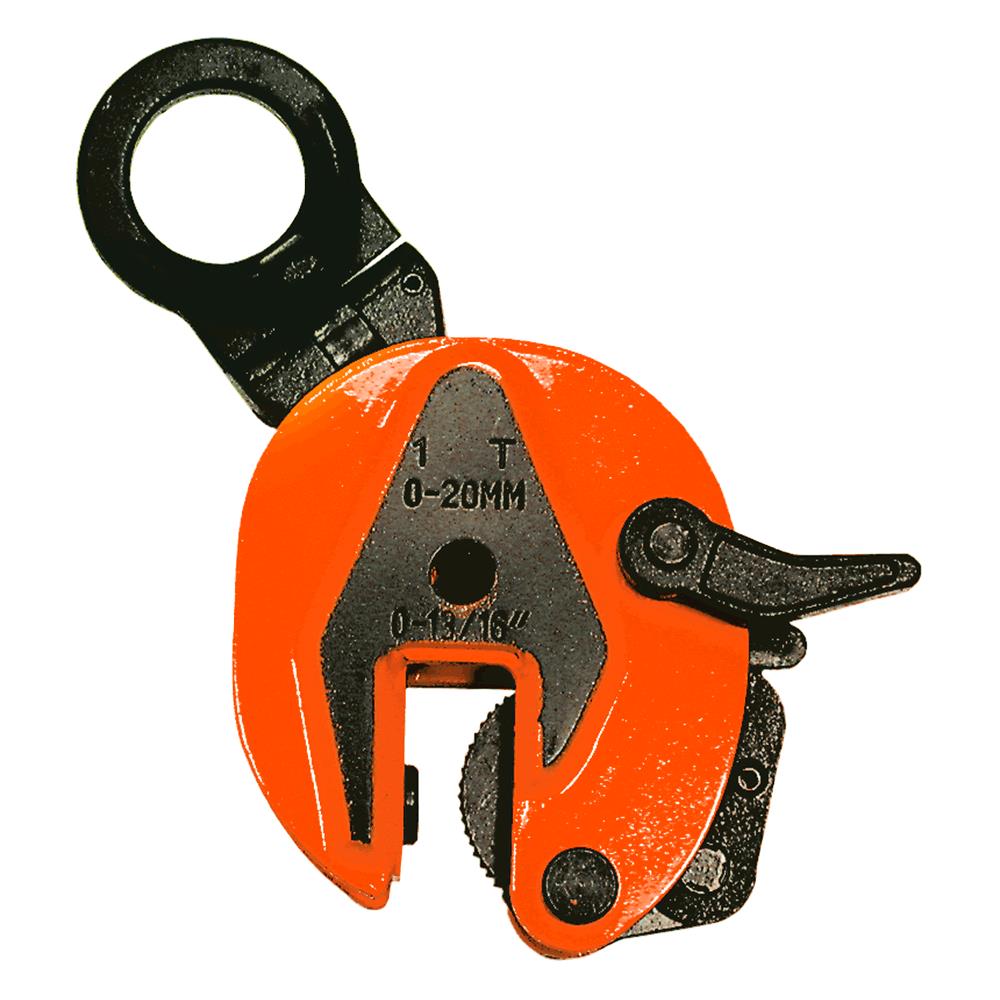

1 Ton SUMO Series Universal Plate Clamp (109323)

1 Ton SUMO Series Universal Plate Clamp (109323)

Jet

Shipping 13.21 lb

  • $156.93


1 Ton SUMO Series Universal Plate Clamp (109323)
  • Universal type suitable for lifting horizontally stored plates into vertical position
  • Can be used to flip plates over provided adequate ground clearance is allowed for safety lock lever to operate
  • Heavy duty industrial plate clamps safely lift various sizes and weights of steel plates
  • A must for all steel fabrication plants
  • All units complete with safety lock
  • Specially hardened jaw for long life and safe gripping power
  • Suitable for plates of 400 Vickers (HRC-41) Max
  • Meets ANSI B30.20 specifications (Certificate included)
  • Tested to 200% of rated capacity
Specifications:
  • Shipping Weight 11.0 lb (5 kg)
  • Product Weight (lb/kg) 11 lb (5 kg)
  • Rated Lifting Capacity (Tons) 1
  • Jaw Opening 0 - 13/16"
  • Suspension Eye Opening 2-1/4"
  • Min Plate Thickness (in/mm) 13/64" (5.0)

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
