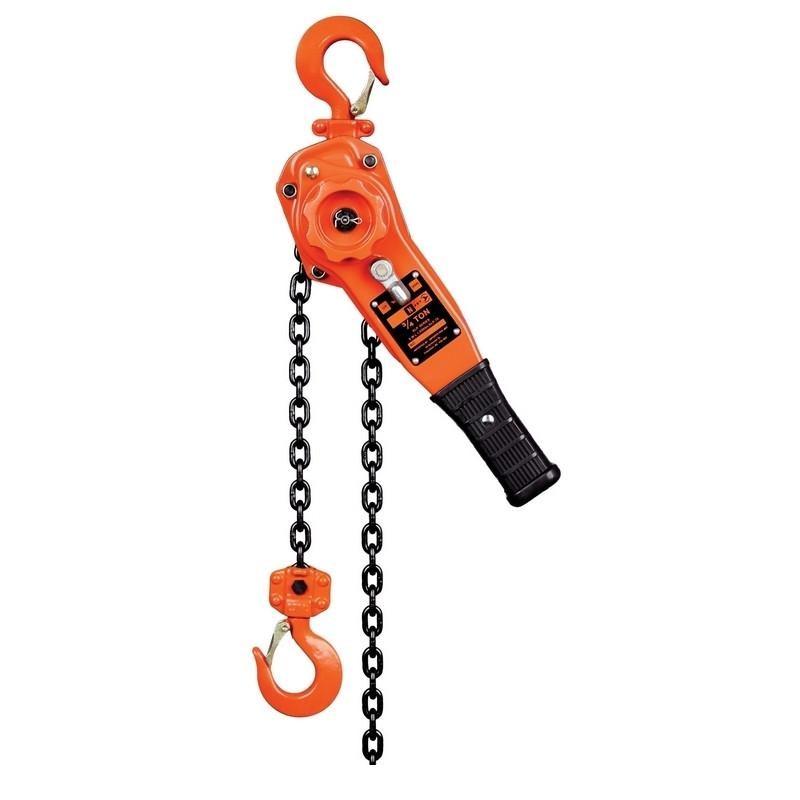

1-1/2 Ton 5' Lift KLP Series Lever Chain Hoist - Heavy Duty (110403)

1-1/2 Ton 5' Lift KLP Series Lever Chain Puller - Heavy Duty (110403)

Jet

Shipping 26.61 lb

  • $354.69


1-1/2 Ton 5' Lift KLP Series Lever Chain Hoist - Heavy Duty (110403)
  • High impact gear case and brake cover for heavy duty service
  • Grade 100 load chain for greater strength
  • Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
  • Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Top and bottom safety hooks bend to warn of overloads
  • Cast steel safety latches exceed industry standards
  • Deformation indicators on hooks allow accurate measurement for easy maintenance
  • Load tested to 150% of rated capacity (with certificate)
  • Meets ASME B30.21 standards
  • ISO 9001-2008 certified factory
  • NOTE: Custom Lifts are available in any length desired.
Specifications:
  • Shipping Weight 22.8 lb (10.4 kg)
  • Product Weight (lb/kg) 21.604 lb (9.82 kg)
  • Rated Lifting Capacity (Tons) 1-1/2
  • Standard Lift 5'
  • Number of Falls 1
  • Load Chain Diameter 7.1mm
  • Min Distance Between Hooks 13-3/4"
  • Force Req. to Lift Capacity (lbs) 46
  • Lever Length 16-1/4"
  • A 6-1/2"
  • B 4-1/4"
  • C 47mm
  • D 16-1/4"
  • G 33.5mm
  • H 13-3/4"

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
