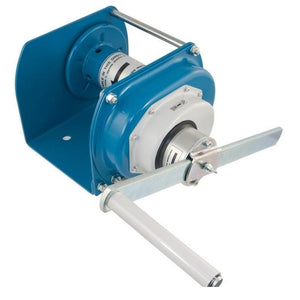

Jet 113263 882 lb Capacity Hand Winch - Super Heavy Duty
882 lb Capacity Hand Winch - Super Heavy Duty (113263)
- Chain hoist type dual pawl Weston brake for ultimate load control
- All braking components are plated with a rust resistant finish
- Non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment
- Free wheeling feature enables the operator to pay out cable fast
- Will not free wheel under load
- Dust and weather-tight housing using an ABS plastic cover to seal out dust and rain
- Handle grip is designed to allow maximum comfort during winding
- Handle length is easily adjustable
- Product Weight (lb/kg) 30.8 lb (14 kg)
- Rated Lifting Capacity (lbs) 882
- Drum Capacity 1/4" x 98'
- Cable length pulled per turn (in) 2-3/16"
- Force req. to lift Capacity (lbs) 25
- Handle length (in) 13-3/4"
- Gear Ratio 4.33:1
- A 2-3/4"
- B 5-33/64"
- C 5-29/32"
- D 3-15/16"
- E 19/32"
- F 19-13/64"
- G 13-3/4"
- H 7-11/64"
- I 5-1/8"
- J 9-31/32"
- K 12-15/16"
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
