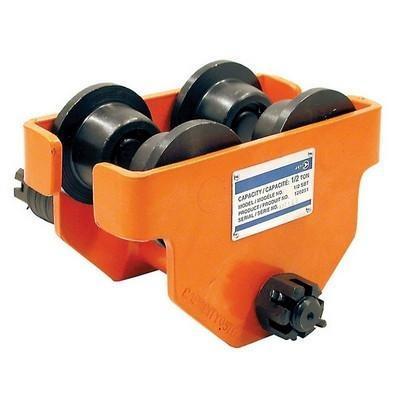

Jet 120251 1/2 Ton SBT Series Manual Trolley - Heavy Duty
1/2 Ton SBT Series Manual Trolley - Heavy Duty (120251)
- Load is moved by pulling on hoist load chain in direction of travel
- Double sealed ball bearings for long life
- Specially hardened steel wheels meet ANSI B30.11 specifications (Certificate included)
- Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent wheels from contacting other trolleys on the track
- Adjustable to fit various sizes of flanges and beams
- Comes equipped for use on up to 8" beam widths
- Can be installed or removed at any point along the track
- Use on straight or curved H, I, W and S-beams
- Product Weight (lb/kg) 19.8 lb (9 kg)
- Rated Capacity (Tons) 1/2
- Rated Capacity (lbs) 1,100
- I-Beam Flange Width (H) 3-1/4" to 8-1/32"
- Minimum Radius Curve 36"
- A 12-13/32"
- B 8-1/2"
- C 8-1/8"
- D 2-1/4"
- E 1-1/4"
- F 1/8"
- G 4-41/64"
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
