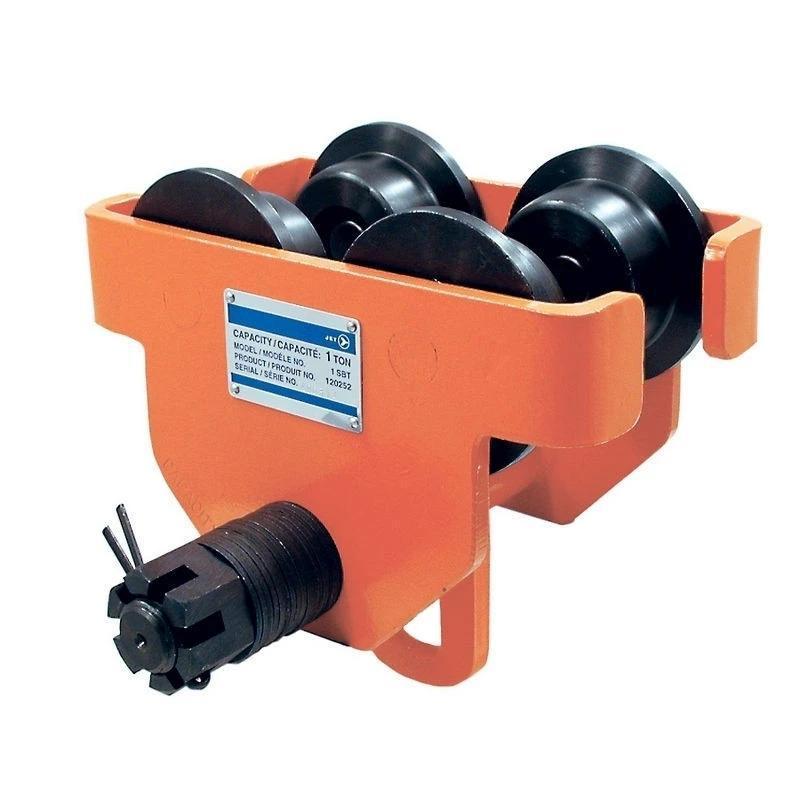

Jet 120252 1 Ton SBT Series Manual Trolley - Heavy Duty
1 Ton SBT Series Manual Trolley - Heavy Duty (120252)
- Load is moved by pulling on hoist load chain in direction of travel
- Double sealed ball bearings for long life
- Specially hardened steel wheels meet ANSI B30.11 specifications (Certificate included)
- Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent wheels from contacting other trolleys on the track
- Adjustable to fit various sizes of flanges and beams
- Comes equipped for use on up to 8" beam widths
- Can be installed or removed at any point along the track
- Use on straight or curved H, I, W and S-beams
- Product Weight (lb/kg) 33 lb (15 kg)
- Rated Capacity (Tons) 1
- Rated Capacity (lbs) 2,200
- I-Beam Flange Width (H) 4" - 8-1/32"
- Minimum Radius Curve 40"
- A 13-1/8"
- B 10-1/4"
- C 9-3/8"
- D 2-15/16"
- E 1-1/4"
- F 1/8"
- G 5-13/64"
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
