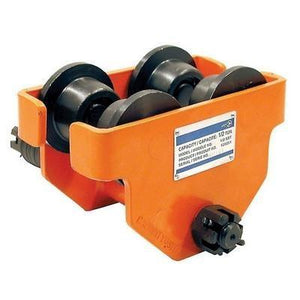

5 Ton SBT Series Manual Trolley - Heavy Duty (120256)

5 Ton SBT Series Manual Trolley - Heavy Duty (120256)

Jet

Shipping will be Collect or can Pick-up in Store

Contact us for Shipping quote or Pick-up in Store

  • $742.90


5 Ton SBT Series Manual Trolley - Heavy Duty (120256)
  • Load is moved by pulling on hoist load chain in direction of travel
  • Double sealed ball bearings for long life
  • Specially hardened steel wheels meet ANSI B30.11 specifications (Certificate included)
  • Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent wheels from contacting other trolleys on the track
  • Adjustable to fit various sizes of flanges and beams
  • Comes equipped for use on up to 8" beam widths
  • Can be installed or removed at any point along the track
  • Use on straight or curved H, I, W and S-beams
Specifications:
  • Shipping Weight 124.9 lb (56.8 kg)
  • Product Weight (lb/kg) 121 lb (55 kg)
  • Rated Capacity (Tons) 5
  • Rated Capacity (lbs) 11,000
  • I-Beam Flange Width (H) 4-1/2" ¬Å¡¬'Å¡¬ 8-1/32"
  • Minimum Radius Curve 55"
  • A 15-15/32"
  • B 15-3/8"
  • C 15-29/32"
  • D 4-3/4"
  • E 13/16"
  • F 1/8"
  • G 8-3/4"

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
