Jet 120616 3 Ton VBC Series Beam Clamp

SKU: JET120616:EA Available on Backorder
Regular price $160.56
Features:
  • Robust, all steel construction
  • Can be adjusted to fit securely on a wide range of flange and beam widths
  • Meets ANSI B30.11 specifications (certificate included)
  • Tested to 125% of rated capacity
  • Built in suspension bar provides ultra-low headroom
  • Extension kits available for use on larger beam widths

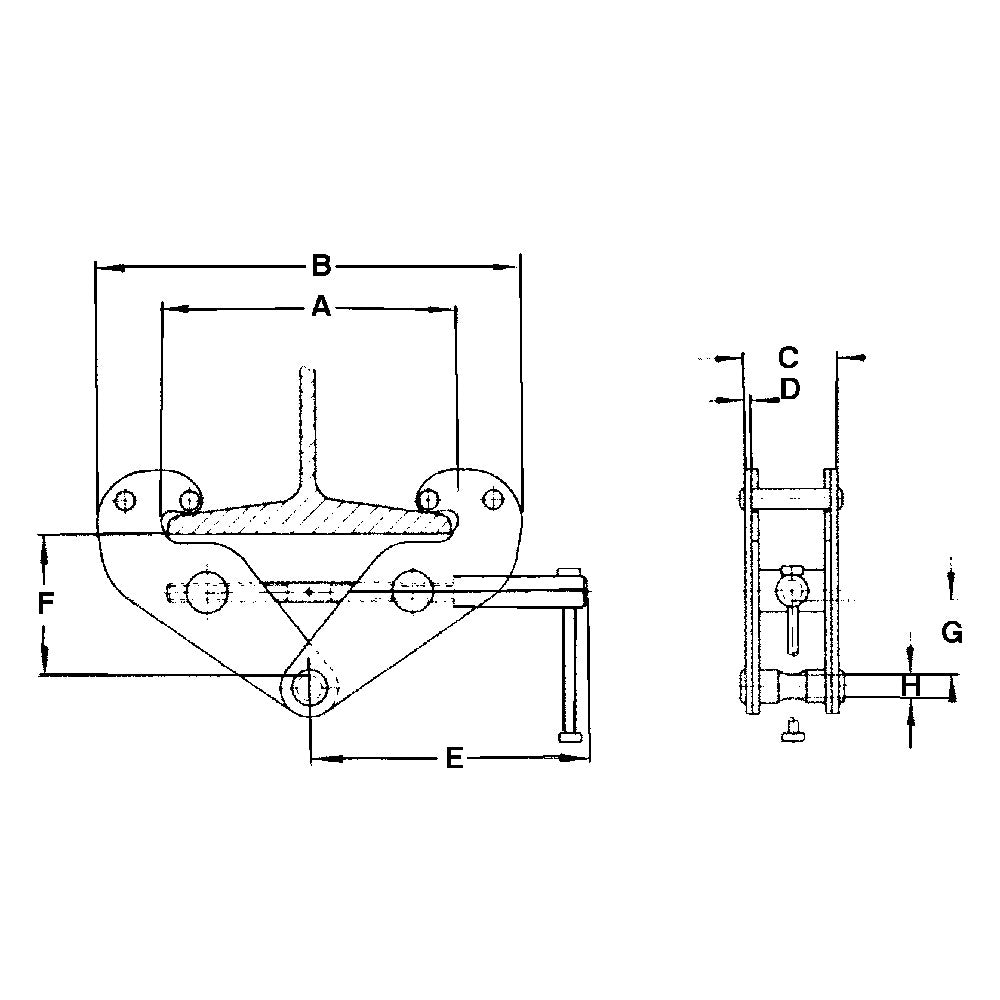

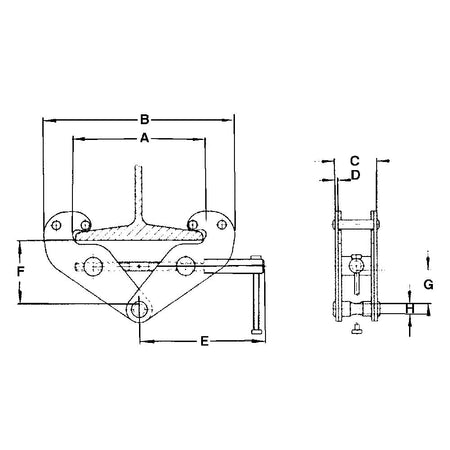

Specifications:
  • C: 4-1/16"
  • Capacity: 3 T
  • D: 5/16"
  • E: 10-1/4"
  • G: 1-49/64"
  • H: 61/64"
  • Maximum A: 13-15/16"
  • Maximum B: 19-19/64"
  • Maximum F: 5-1/2"
  • Minimum B: 9-1/4"
  • Minimum F: 8-55/64"
  • Rated Capacity: 6,600 lb
  • Rated Flange Width: 3-5/32 - 12-39/64"
  • Shipping Weight: 23.15 lb (10.5 kg)

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
