1/4" Air Riveter  Super Heavy Duty (409008)

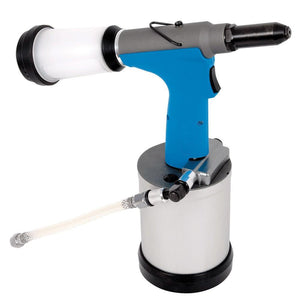

Jet 409008 1/4" Air Riveter Super Heavy Duty


Available on Backorder

  • $808.57

1/4" Air Riveter Super Heavy Duty (409008)
  • New production quality air riveter delivers a powerful pulling load of 3,520 lbs
  • Can be used on aluminum, steel and stainless steel rivets up to 1/4"
  • Can also be used on 3/16" and 1/4" monobolts
  • Specific components manufactured with high cost, super precise CNC deep hole drilling processes for extreme accuracy and tolerance
  • Longer 26mm stroke sets rivets in one hit, increasing efficiency
  • Integrated vacuum/exhaust system with a convenient adjustable switch allows operator to adjust mandrel retention and collection
  • Designed with integrated spring and air return system for fast, reliable cycles
  • Japanese NOK rubber gasket for longest tool life
  • Specially designed "quick opening" collection bottle eliminates the need to remove bottle when emptying
  • Includes 3 sizes of nose pieces for a wide range of uses
  • Designed for production and heavy duty power riveting applications
  • For maximum performance we recommend 90 PSI air pressure
  • Product Weight (lb/kg) 3.3 lb (1.49 kg)
  • Rivet Capacity 1/4"
  • Stroke 1.02" (26mm)
  • Pull Force (lbs) 3,520
  • Avg. Air Consumption (CFM) 10.1
  • Min. Hose size 3/8"
  • Air Inlet (NPT) 1/4"
  • Nosepiece 5/32" ( 4.0mm) , 3/16" ( 4.8mm) , 1/4" ( 6.4mm)
  • Vibration (m/s²) 2.5
  • Sound Pressure (dBA) 75

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
