I/M' Coupler Male - 1/4" Body x 1/4" NPT (420052)
Jet

Jet 420052 I/M' Coupler Male - 1/4" Body x 1/4" NPT

SKU: JET420052:EA In Stock
$9.00
Description

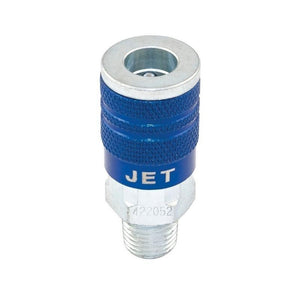

'I/M' Coupler Male - 1/4" Body x 1/4" NPT (420052)
  • This type of plug has been adopted by all major manufacturers
  • To identify this plug, look for the 3/16" tip
  • "V" shape, flat bottom ball groove
  • Complies with ANSI T3.20.14 dimensions
  • Couplers have deep knurled socket sleeve
  • Couplers have "4-Ball-Positive-Locking" mechanism
  • Couplers and plugs made from Zinc-Plated steel to prevent rust from a moisture rich environment
  • Used with pneumatic tool for general air service
  • Maximum Working Pressure - 150PSI
  • Air Flow 35 SCFM at 100 PSI inlet with 10 PSI pressure drop
  • Operating Temperature Range - -40°F to 225°F (-20°C to 107°C)
Specifications:
  • Description Coupler
  • Type Male
  • Thread NPT
  • Material Steel
  • Packaging Blister/Card
  • Pieces 1

* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
