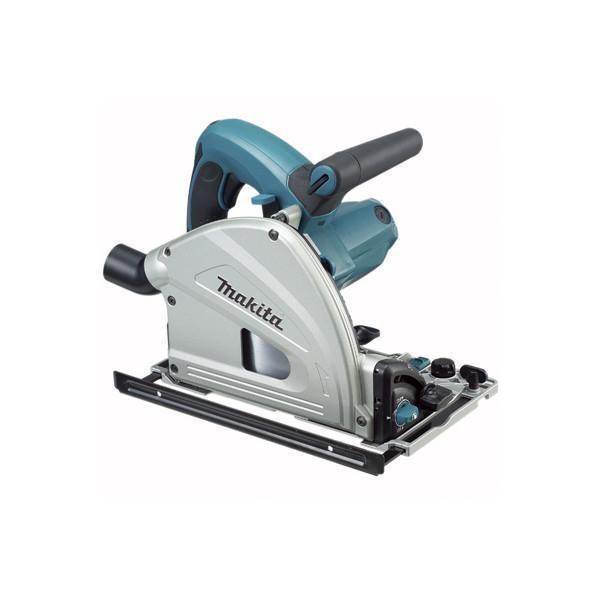

Unique Plunge Action For Specialized Cuts
- 55" Guide Rail
- Depth Stopper enables splinter-free cutting
- Precision Bevel Cut feature maintains exact blade position for quick and easy bevel cutting without compensating adjustments
- Soft Start feature gradually increases speed to eliminate start up shock
- Constant Speed Control maintains constant speed under heavy load
- Overload Protection prevents motor burnout due to current overload
- Variable Speed Dial adjusts cutting speed based on materials or application
- Lightweight design with magnesium blade case, gear housing and base
- Close to Wall Cut of just 11/16"
- Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
- STANDARD EQUIPMENT INCLUDES: 6-1/2" C.T. Blade 48T (B-07353), Hex Wrench 5 (783203-8), Vacuum Hose Adapter (P-80013), 55" (139.7 cm) Guide Rail (194368-5)
- SPECIFICATIONS:
- Blade Diameter 6-1/2" (165 mm)
- Arbor 13/16" (20 mm)
- Maximum Cutting Capacity:
- 0° 2-3/16" (56 mm)
- 45° 1-9/16" (39 mm)
- 48° 1-1/2" (38 mm)
- No Load Speed 2,000 - 6,400 RPM
- AMPS (120 V) 12.0 A
- Vibration Level 2.5 m/s²
- Noise Level 81 dB(A)
- Overall Length 13-3/8" (341 mm)
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
