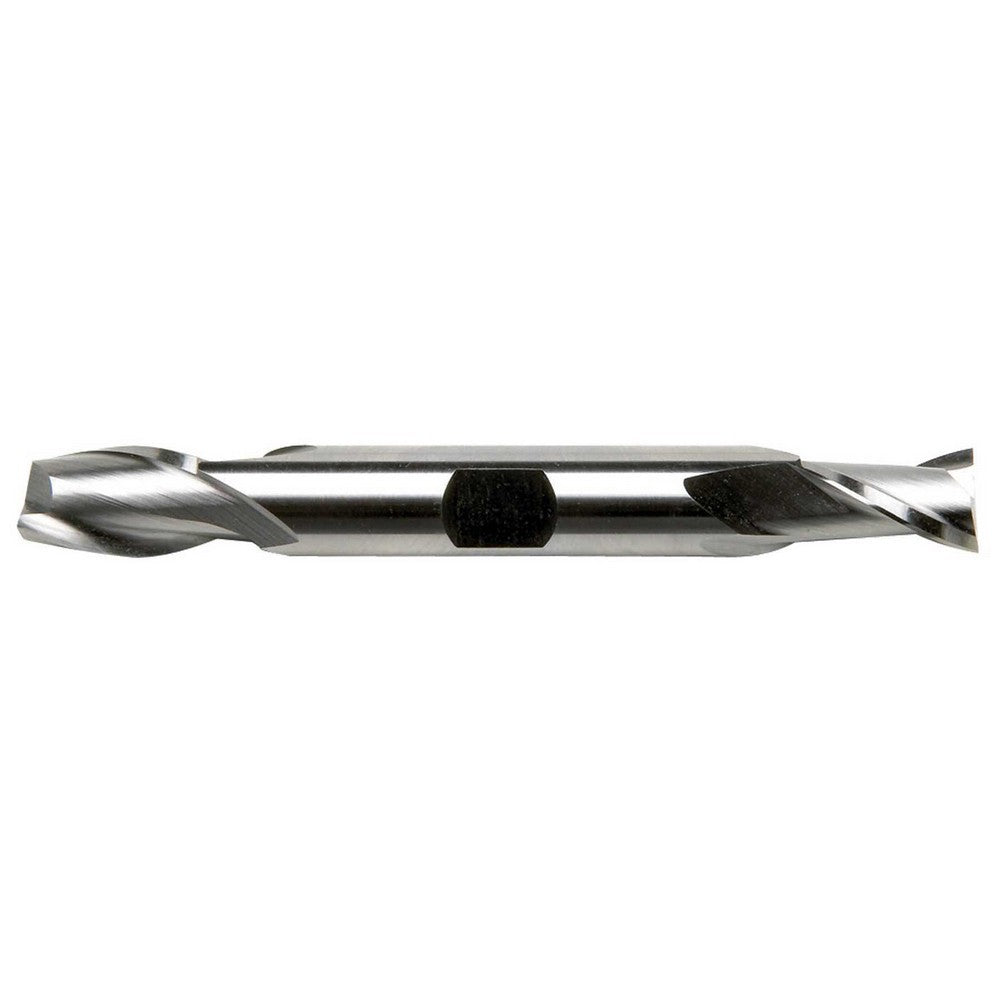

SOWA End Mills 2 Flute Double End Regular Length HSCO
Regular price
$30.03
Couldn't load pickup availability
Excellent tool geometry for slotting, keying and general purpose milling, plus the added economy offered by the double-end design.

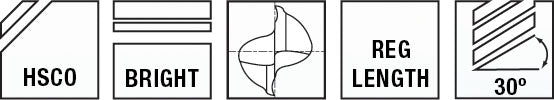

Features:
- Square double end
- 2 helical flutes
- Centre cutting
- Double end with Weldon shank
- Made of Cobalt High Speed Steel
- Bright Finish
- 30° Helix Angle
Specifications:
Part # | Cutting Diameter | Shank Diameter | Flute Length | Overall Length |
103-180 | 1/8" | 3/8" | 3/8" | 3-1/16" |
103-184 | 3-16" | 3/8" | 7/16" | 3-1/8" |
103-188 | 1/4" | 3/8" | 1/2" | 3-1/8" |
103-192 | 5/16" | 3/8" | 9/16" | 3-1/8" |
103-196 | 3/8" | 3/8" | 9/16" | 3-1/8" |
103-204 | 1/2" | 1/2" | 13/16" | 3-3/4" |
103-206 | 9/16" | 5/8" | 1-1/8" | 4-1/2" |
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
