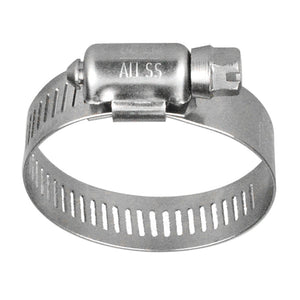

Green Line Stainless Steel Hose Clamps - Variety of Sizes Available
For current pricing, product availability, or to place an order, please contact our Lethbridge Fasteners team directly.
Green Line G8 series clamps are completely stainless steel. The G8M clamps have a 5/16" wide type 301 stainless band with a type 410 stainless screw. G8 clamps have a 1/2" wide, 300 series stainless band and screw.
Specifications:
- Fitting Category: Gear Clamps
- Fitting Type: Standard Gear Clamp
- Material: Stainless Steel
| Part | Nominal Size | Band Width | Maximum Size | Minimum Size | Size Range |
| G8-06 | 3/8" | 1/2" | 0.88" | 0.44" | 11mm - 22mm |
| G8-08 | 1/2" | 1/2" | 1.00" | 0.44" | 11mm - 25mm |
| G8-10 | 5/8" | 1/2" | 1.06" | 0.56" | 14mm - 27mm |
| G8-12 | 3/4" | 1/2" | 1.25" | 0.56" | 14mm - 32mm |
| G8-16 | 1" | 1/2" | 1.50" | 0.69" | 18mm - 38mm |
| G8-20 | 1-1/4" | 1/2" | 1.75" | 0.75" | 19mm - 44mm |
| G8-24 | 1-1/2" | 1/2" | 2.00" | 1.06" | 27mm - 51mm |
| G8-28 | 1-3/4" | 1/2" | 2.25" | 1.31" | 33mm - 57mm |
| G8-32 | 2" | 1/2" | 2.50" | 1.56" | 40mm - 64mm |
| G8-36 | 2-1/4" | 1/2" | 2.75" | 1.81" | 46mm - 70mm |
| G8-40 | 2-1/2" | 1/2" | 3.00" | 2.06" | 52mm - 76mm |
| G8-44 | 2-3/4" | 1/2" | 3.25" | 2.31" | 59mm - 83mm |
| G8-48 | 3" | 1/2" | 3.50" | 2.56" | 65mm - 89mm |
| G8-52 | 3-1/4" | 1/2" | 3.75" | 2.81" | 71mm - 95mm |
| G8-56 | 3-1/2" | 1/2" | 4.00" | 3.06" | 78mm - 102mm |
| G8-60 | 3-3/4" | 1/2" | 4.25" | 3.31" | 84mm - 108mm |
| G8-64 | 4" | 1/2" | 4.50" | 2.50" | 64mm - 114mm |
| G8-72 | 4-1/2" | 1/2" | 5.00" | 3.00" | 76mm - 127mm |
| G8-96 | 6" | 1/2" | 6.50" | 4.50" | 114mm - 165mm |
| G8-104 | 104" | 1/2" | 7.00" | 5.00" | 127mm - 178mm |
| G8-188 | 11-3/4" | 1/2" | 12.25" | 2.25" | 260mm - 311mm |
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
