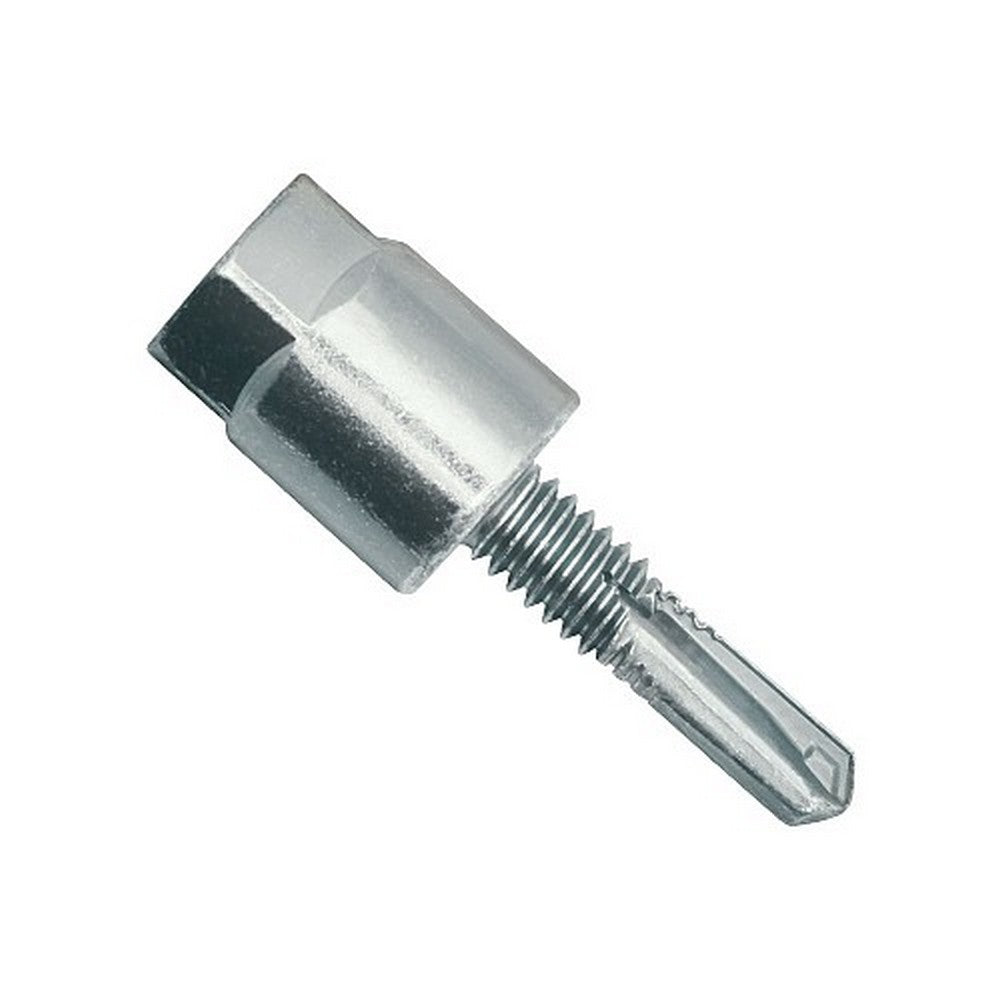

Dewalt PFM2231100 3/8" x 1/4" x 1" Hangermate Vertical Rod Hanging Anchors for Steel

SKU: PWRPFM2231100:EA In Stock
Regular price $0.86

HangerMate is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. They are available in versions which can be installed in a variety of base materials including steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns. Steel threaded rods in 1/4" and 3/8" diameters can be vertically suspended with HangerMate (a 1/2" diameter size is also available for wood). They are also offered in a side mount style for lateral installation of 1/4" and 3/8" diameter steel threaded rods onto joists, columns and overhead members. For all steel and wood hangers, a HangerMate Socket Driver is recommended to provide proper installation with a drill screw gun. For concrete hangers, a powered impact tool with a maximum impact wrench power of 120 ft-lb is recommended.A pivot head version is also available for flexible connection angle and positioning of rod hangers. An acoustical ceiling eyelet version is also available for hanging wire or cable attachments.


  • Ease and speed of overhead installation
  • Lower in-place cost, when compared to beam clamps, lag bolts and dropins
  • Steel and wood HangerMate can be installed with a drill screw gun
  • Side mount versions available for steel and wood HangerMate
  • Socket drivers, pole tool and accessories to optimize ease of installation


  • Description: 1/4-20" x 1" #3
  • For: Steel
  • Rod Diameter: 3/8"
  • Driver (silver): PFM2201200
  • Mount: Vertical

General Applications & Uses:

  • Hanging Pipe and Sprinkler Systems
  • Suspending Conduit and Cable Trays
  • Lighting Systems and Overhead Utilities
  • HVAC Ductwork and Strut Channels
  • Suspended Ceilings
  • Mounting Security Equipment


  • FM Approvals (FM) - see listing for applicable sizes and types Pipe Hangers components for automatic sprinkler systems - File No. JI 3015153
  • Underwriters Laboratory (UL) - see listing for applicable sizes and types Pipe Hangers - File No. EX 1289

Additional Hangermate Rod Hangers & Drivers:

Part No. Description For Rod Diameter Driver Mount
PFM2231100 1/4"-20 x 1" #3 Steel 3/8" PFM2201200 (silver) Vertical
PFM2241100 1/4"-20 x 1" #3 Steel 3/8" PFM2201200 (silver) Side
PFM2251000 1/4"-20 x 2" Wood 1/4" PFM2201150 (red) Vertical
PFM2251050 1/4"-20 x 1" Wood 3/8" PFM2201150 (red) Vertical
PFM2251150 5/16"-16 x 2-1/2" Wood 3/8" PFM2201150 (red) Vertical
PFM2261150 5/16"-16 x 2-1/2" Wood 3/8" PFM2201150 (red) Side
